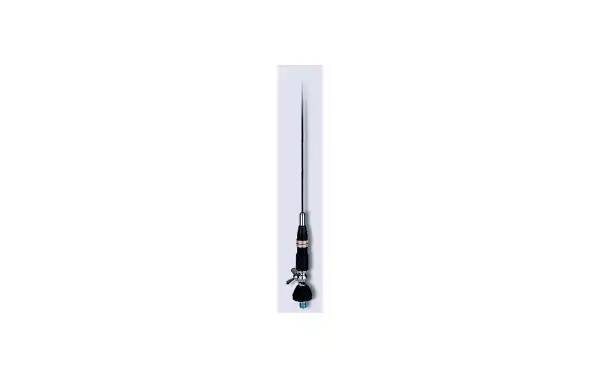

| CB Mobile antenna
| |
| Tunable by screw or unscrew the metallic ring
| |
| 17/7 PH tapered stainless steel whip
| |
| 180° inclination and adjustable whip, detachable for car-wash
| |
| Wide range of mounting optional bases available
| |
| Suitable for magnetic mount |  |
| Electrical Date | | | Type : CB base loaded | | Frequency range : 26.8-27.8 MHz | | Impedance : 50%u279 unbalanced | | Radiation (H-plane) : 360° omnidirectional | | Polarization : verticale | | Bandwidth at S.W.R. 2:1 :
SNAKE 27 : 1500 KHz
| | S.W.R. at bête freq. : %u2264 1.2:1 | | Max. power : 10 Watts (CW) continuous, 40 Watts (CW)short time | | Standard mount :
SNAKE 27, MINI SNAKE 27 : "N"
| | Câble lenght/Type :
SNAKE 27, 4 m/RG 58
| | | | | Mechanical Date | | | Materials : Brass, Copper, Nylon, Stainless Steel | | Height (approx.) :
SNAKE 27 : 1125 mm
| | Weight (approx.) :
SNAKE 27, MINI SNAKE 27 : 350 GR
| | Mounting hole : Ø 12.5 mm |
|
