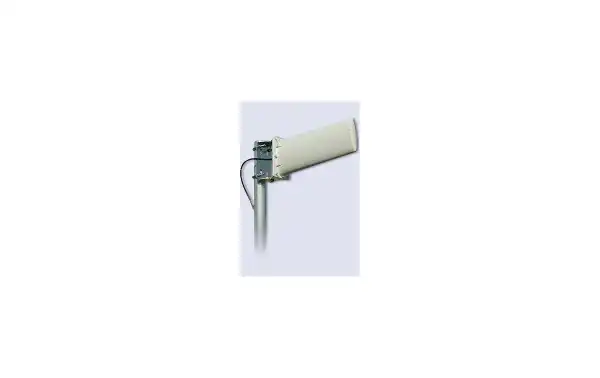

2,5 SYRIAN SLP1.7- DIRECTIVE ANTENNA WIRELESS

2,5 SYRIAN SLP1.7- DIRECTIVE ANTENNA WIRELESS. For DSC, PCS, DECT, UMTS, WLAN.Conector of antenna SMA female. plus Fabricant: sirio Référence SIRIOSLP17

disponible
Avant 52.03€
44,23 TVA compris
36,55€ s/IVA
Coût du transport: À partir de 30,25€
Nous travaillons sur la traduction de notre site, peut-être vous remarquerez des fautes d'orthographie. Si vous voyez un erreur dans la traduction de ce produit vous pouvez le signaler en cliquant ici.

DESCRIPCIÓN DEL PRODUCTO

SIRIO SIRIOSLP17


SIRIO SIRIOSLP17

SIRIO SLP1.7- 2.5  ANTENA DIRECTIVA WIRELESS. Para DSC,PCS,DECT,UMTS,WLAN

Mechanical data
Materials: Aluminium, Brass, Stainless Steel
Radome material: white ABS UV stabilized
Wind load / resistance: 61 N at 150 Km/h / 180 Km/h
Wind surface: 0.04 m²
Dimensions (approx.): 345 x 135 x 73 mm
Turning radius: 310 mm
Weight (approx.): 400 gr
Operating temperature: -40° C to 80° C
Mounting mast:
 clamp: Ø 25-70 mm
 mast: Ø 25-42 mm with U-bolt (optional)
 wall with mounting screws (not included)


 SIRIO SIRIOSLP17

SIRIO SIRIOSLP17
 SIRIO SIRIOSLP17
 SIRIO SIRIOSLP17
 SIRIO SIRIOSLP17
 SIRIO SIRIOSLP17


SIRIO SIRIOSLP17



 SIRIO SIRIOSLP17


SIRIO SIRIOSLP17




CARACTERÍSTICAS

- Antena base directiva.
- Log periodica.
- High-Gain.
- Para DSC,PCS,DECT,UMTS,WLAN
- Protección descargas estaticas.
- ABS termoplastico UV.
- Impedancia 50 Ohm.
- Frecuencia 1700-2500 Mhz.
- Polarización vertical
- Rad. angulo 0º
- Rad.(HPLANE) -3 dB=58º Frec. in.
- Rad.(EPLANE) -3 dB=46º frec. in.
- V.S.W.R. < 2.1
- Pot. max. 50 W.
- Ganancia 11,1 dBi.
- Insolation > 24 dB.
- Dimensiones 345x135x73 mm.
- Peso 400 Gr.
- Conexión SMA hembra.
